BJT vs MOSFET: The Electromechanical Power Switch Shootout

An in-depth technical showdown of BJT (Bipolar Junction Transistor) and MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) switching operations, efficiency factors, and drive layouts.

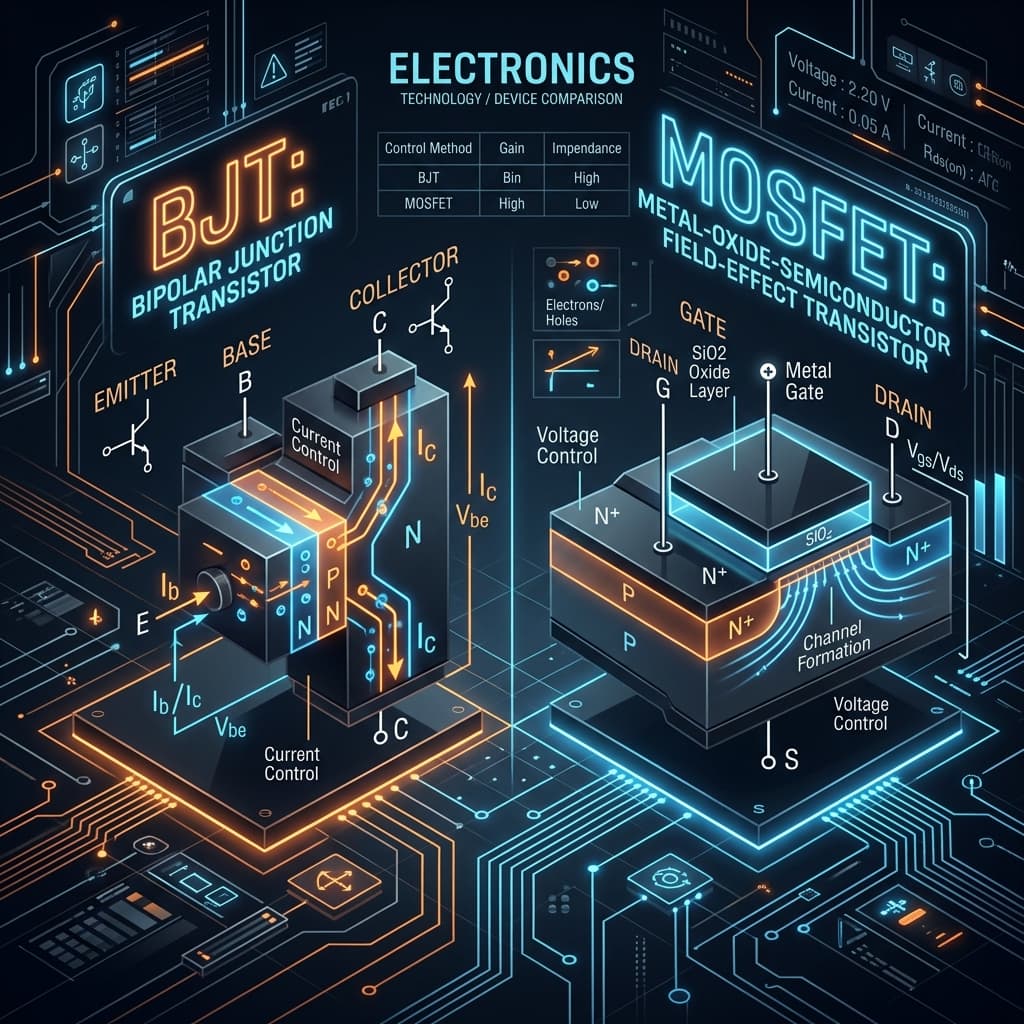

BJT vs MOSFET structural logic highlighting base current control vs gate charge control principles
Control Parameter

BJT: Base Current (Ib) | MOSFET: Gate Voltage (Vgs)

Input Impedance

BJT: Low (kOhms) | MOSFET: Extremely High (Gigaohms)

Switching Speed

BJT: Moderate (Microseconds) | MOSFET: Ultra-Fast (Nanoseconds)

Understanding the Core Principles

In modern electronic circuit layouts, selecting the correct semiconductor switch can dictate the difference between an incredibly efficient, cold-running converter and a literal thermal runaway disaster. The two main components contending for this switching throne are the Bipolar Junction Transistor (BJT) and the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET).

The foundational difference lies in how they are controlled. A **BJT** is a **current-controlled device**, requiring a constant injection of current into its Base terminal to maintain charge flow from Collector to Emitter. A **MOSFET** is a **voltage-controlled device**, utilizing an electrostatic field set up by gate voltage to channel electrons from Source to Drain through an insulated silicon boundary, requiring near-zero continuous DC drive currents.

Key Metric: A MOSFET\'s static conduction loss is measured by its **Rds(on)** channel resistance, whereas a BJT\'s loss is restricted by a fixed **Vce(sat)** voltage drop, which typically bottoms out at about 0.2V to 0.4V regardless of current drop levels.

The Conduction & Switching Efficiency Comparison

When a BJT is fully turned on, it is driven into **saturation**, where the collector-emitter voltage saturates. The power dissipated under static conduction is equal to:P_conduction (BJT) = Vce(sat) * IcollectorFor a **MOSFET**, since the open channel behaves essentially as a high-precision linear resistor, the conduction loss is calculated via Ohm\'s law squared:P_conduction (MOSFET) = I_drain^2 * Rds(on)This mathematical difference yields a clear choice: at low-to-medium load currents, a MOSFET with a low Rds(on) (e.g. 5 milliohms) will dissipate a fraction of the heat of a BJT. However, at extremely high currents, the current-squared multiplier causes MOSFET losses to balloon, making the relatively linear BJT or IGBT structures highly competitive.

⚠️ Warning: High frequency switching triggers significant thermal losses in MOSFETs. Even though the DC gate current is zero, the gate acts as a capacitor (Ciss) that must be charged and discharged rapidly. This requires dedicated high-speed **gate driver circuits** to pump peak charging currents up to 2A during the transition intervals to avoid keeping the MOSFET in its linear resistive linear region for too long.

Detailed Comparison Table

FeatureBJTMOSFET
Drive TypeCurrent-controlled (Base current required)Voltage-controlled (Gate charge required)
Input ImpedanceLow (Input base draws power)Near Infinite at DC (insulated gate oxide)
Switching FrequenciesUp to ~100 kHz (minority storage delays)Megahertz range (majority carrier flow)
Thermal CoefficientNegative (Risk of thermal runaway in parallel)Positive (Naturally balances parallel sharing)

Common Transistor Design Mistakes

❌ Driving a MOSFET Directly from MCU I/O pins without checking Vgs thresholds

Many high-power MOSFETs require a Gate-to-Source voltage (Vgs) of 10V to fully turn on. Driving them directly with 3.3V or 5V from an Arduino or ESP32 will leave them half-open in their linear region, causing immediate overheating and eventual catastrophic failure. Always look for "logic-level" MOSFETs or implement gate drivers.

❌ Omitting the Gate-to-Source Bleeder Resistor in MOSFET gates

Because MOSFET gates possess capacitive structures, floating gates can accumulate static charge from surrounding electric noise, causing the transistor to turn on partially or completely on its own. Placing a 10k resistor directly between the Gate and Source pins ensures a solid reference to GND whenever the driver line is high-impedance.

Frequently Asked Questions

Why do MOSFETs blow out from static ESD?

The gate of a MOSFET is separated from the channel by a micro-thin layer of silicon dioxide (SiO2). A high-voltage electrostatic discharge (ESD) can easily breach and puncture this oxide layer, destroying the insulating barrier and shorting the gate permanently.

What is a logic-level MOSFET?

A logic-level MOSFET is designed to reach its full saturation state and minimum Rds(on) with a low gate voltage, typically 3.3V or 5V, making it highly compatible with modern microcontroller I/O pins.

Can I connect multiple BJTs in parallel to share high currents?

No, parallel BJTs are highly prone to current hogging. Because BJTs have a negative thermal coefficient, as one BJT warms up, its internal resistance drops, drawing even more current. This self-reinforcing heating loop leads rapidly to thermal destruction. MOSFETs, with their positive thermal coefficients, naturally balance current sharing.

Conclusion

Whether you choose a BJT or a MOSFET depends strictly on your circuit parameters. For high-frequency, low-power switching, the **MOSFET** stands as the absolute king. For basic low-frequency drive applications or micro-power sensors, standard **BJTs** remain an outstanding, robust option. Compare these principles with hands-on projects in our basic electronics workspace to consolidate your learning.
