How Relays Work: Direct Definition
- [How Relays Work] [connects] [circuit theory to practical wiring]
- [how relays work] [improves] [debugging accuracy and component selection]
- [Volt X guides] [link] [related tools, sensors, and embedded systems]
What Happens Inside a Relay

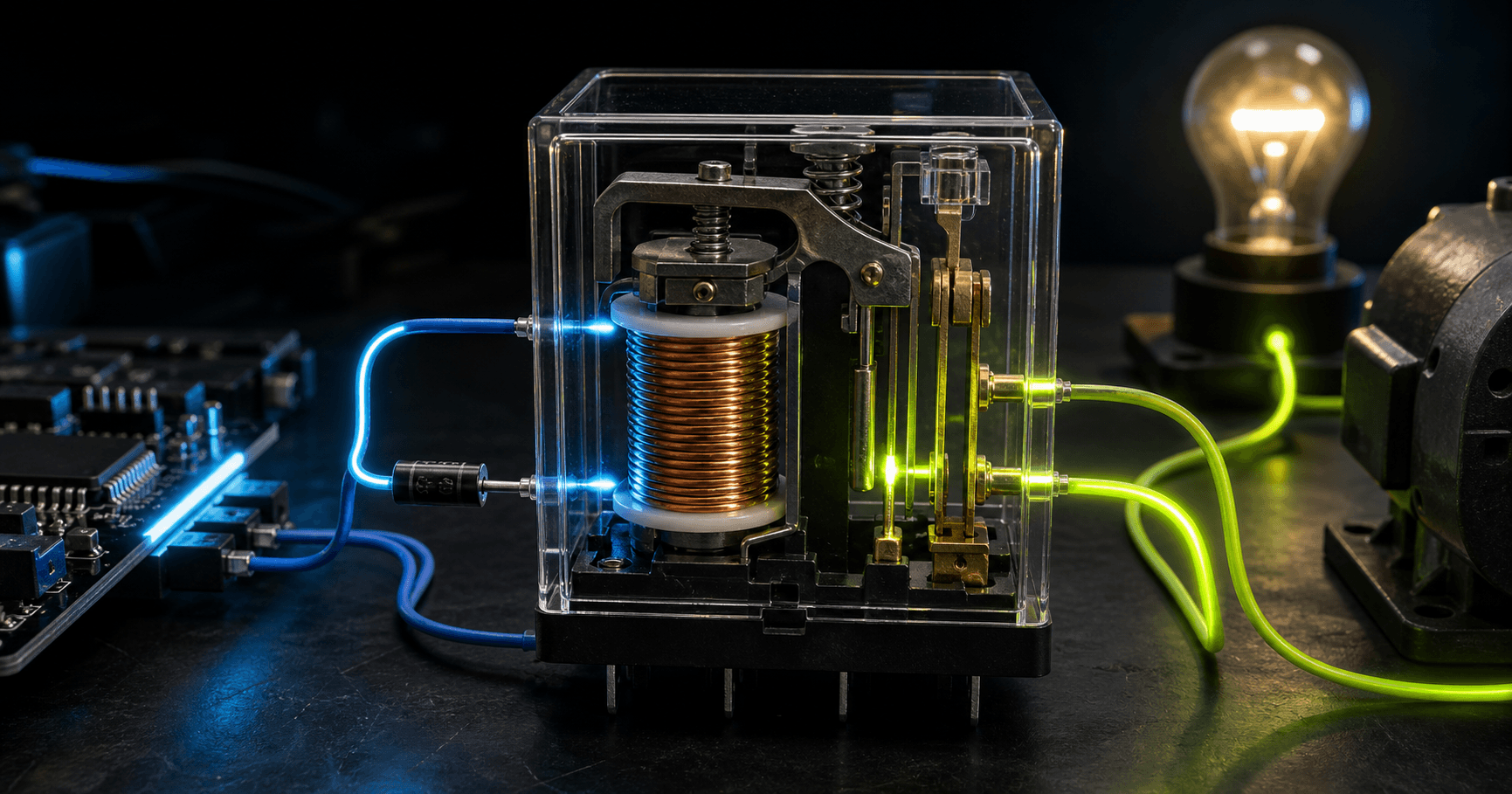

A relay is an electrically controlled mechanical switch. Current through the coil creates a magnetic field that pulls an armature. That movement changes the state of the contacts, connecting common to normally open or normally closed terminals. The control side and load side are isolated, which is why relays remain useful for switching pumps, lamps, fans, and mains-rated loads.
NO, NC, and COM Contacts
COM is the movable contact. NO means normally open, so it connects to COM only when the relay is energized. NC means normally closed, so it connects to COM when the relay is idle. Choosing NO or NC is a system-safety decision, especially when the load should turn off during controller failure.
Why Flyback Protection Is Mandatory
A relay coil is an inductor. When current is interrupted, the collapsing magnetic field creates a voltage spike that can destroy a transistor or microcontroller pin. A flyback diode gives that current a safe path. AC loads and contact arcing may also need RC snubbers or MOV protection across the switched load.
Arduino Relay Module Wiring
A microcontroller pin should not drive a bare relay coil directly. Use a transistor, base or gate resistor, flyback diode, and separate supply sized for the coil. Relay modules include most of this circuitry, but you still need common ground for non-isolated trigger modules and safe physical spacing for mains wiring.
Parts and Modules Availability in India
For student labs and prototype builds in India, look for the exact voltage rating, interface level, package type, and module quality before buying. SP Road in Bangalore, Lamington Road in Mumbai, Lajpat Rai Market in Delhi, Ritchie Street in Chennai, Koti in Hyderabad, Budhwar Peth in Pune, and Chandni Chowk Market in Kolkata commonly stock beginner-friendly modules and passives.
Frequently Asked Questions
What does a relay do?
A relay uses a low-voltage coil to mechanically switch isolated contacts. It lets a microcontroller control higher-voltage or higher-current loads when the coil driver, contact rating, and protection parts are selected correctly.
Why do relays matter in electronics?
It matters because small interface decisions can change accuracy, reliability, safety, and debugging time. Understanding the fundamentals helps you choose values, modules, and wiring methods intentionally.
What is the most common relay wiring mistake?
The most common mistake is treating the circuit as ideal. Real components have limits such as input impedance, noise, timing, voltage ratings, heating, drift, or contact behavior.
Can beginners use this in Arduino projects?
Yes. Start with a low-voltage breadboard setup, verify ratings, use conservative resistor values or modules, and test one signal at a time before connecting expensive boards or high-power loads.
Conclusion
How Relays Work becomes much easier when you separate the ideal idea from the physical limits. Use the specs above, test with conservative values, and connect this topic with related Volt X guides before scaling a prototype into a finished build.
