Linear Hall Effect Sensors: Analog Position & Current Sensing

How Linear Hall Effect Sensors Output Voltage

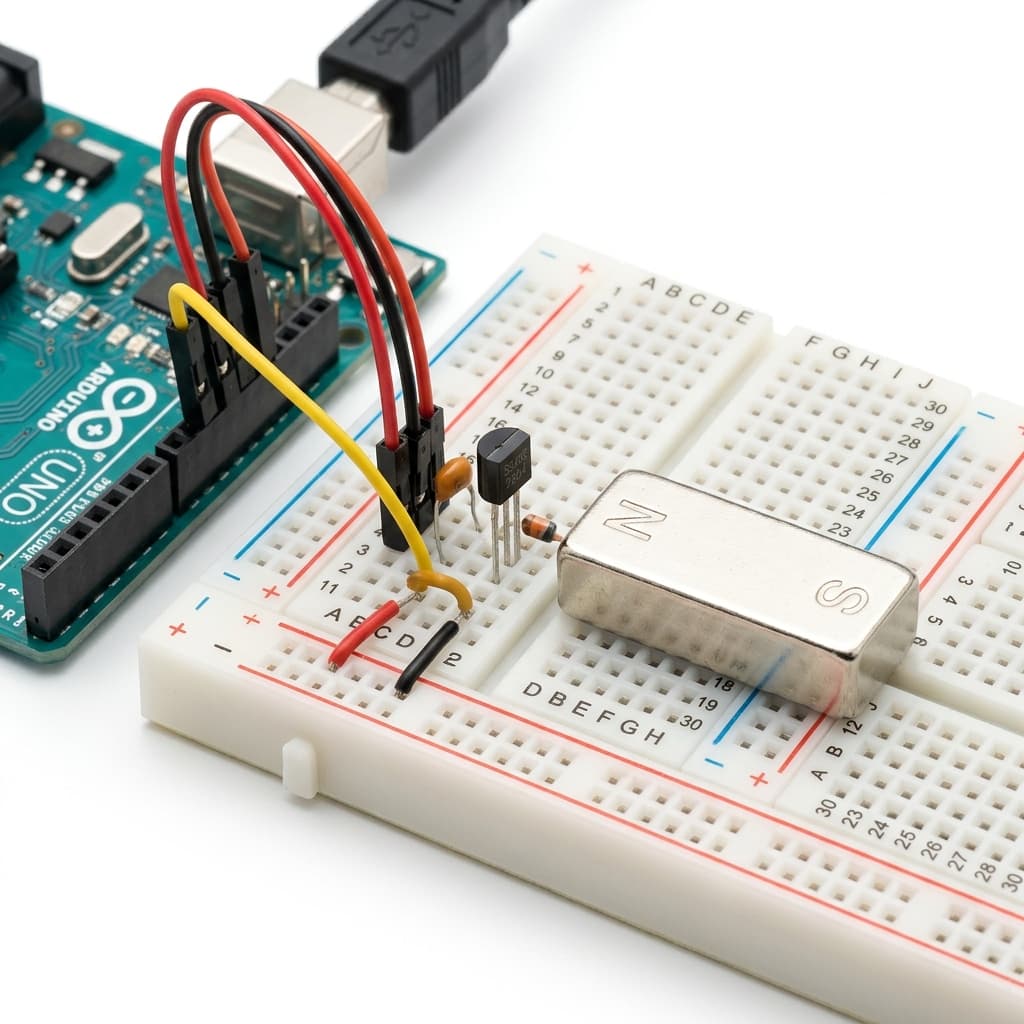

Unlike digital Hall switches (which toggle output states at fixed magnetic thresholds), linear Hall effect sensors (e.g., SS49E) output a ratiometric analog voltage that scales continuously with the magnetic field.

When no external magnetic field is present, the output voltage sits at exactly half of the supply voltage (VCC / 2). For a typical 5.0V supply, this baseline voltage is 2.50V.

• South Magnetic Pole: Bringing a South pole magnet close increases the output voltage above VCC / 2 (scaling up toward VCC).
• North Magnetic Pole: Bringing a North pole magnet close decreases the output voltage below VCC / 2 (scaling down toward 0V).

Analog Position Tracking Applications

Because linear Hall sensors detect small changes in magnetic field strength, they excel in contactless position tracking systems:

• Magnetic Joysticks: A small magnet is mounted at the base of a joystick gimbal above two orthogonal linear Hall sensors. Moving the joystick shifts the magnet closer to one sensor and further from another, outputting a precise X-Y position coordinate. Unlike carbon track potentiometers, Hall joysticks suffer no friction wear and never drift.
• Magnetic Levitation: Linear Hall sensors placed below an electromagnet detect the distance of a floating magnetic object by reading the changes in magnetic flux. A high-speed microcontroller uses this feedback to update electromagnet current.

Isolated Current Sensing: The ACS712

One of the most common applications of linear Hall effect sensors is current measurement. Flowing current through any conductor generates a proportional magnetic field (Ampere\'s Law):

Because the conduction path is physically separated from the Hall sensor element inside the ACS712 chip, it offers galvanic isolation (typically up to 2.1 kV RMS). This protects low-voltage microcontrollers from high AC or DC voltages.

Calibrating SS49E or ACS712 on Arduino

To measure magnetic field strength or current accurately, we must calibrate the sensor by averaging its zero-field baseline.

// Arduino Calibration and Measurement Code for ACS712-5A Current Sensor
const int ANALOG_PIN = A0;
const int SENSITIVITY = 185; // 185 mV/A for 5A version
unsigned long zeroOffset = 0; // Will be calibrated in setup

void setup() {
  Serial.begin(9600);

  // Calibrate Zero-Current Offset (Take 100 samples)
  unsigned long sampleSum = 0;
  Serial.println("Calibrating ACS712 offset... ensure load is OFF.");
  for(int i = 0; i < 100; i++) {
    sampleSum += analogRead(ANALOG_PIN);
    delay(10);
  }
  zeroOffset = sampleSum / 100;
  Serial.print("Offset calibrated: ");
  Serial.println(zeroOffset);
}

void loop() {
  // Read analog value
  int rawValue = analogRead(ANALOG_PIN);

  // Convert to voltage (assuming 5V ADC voltage reference)
  float voltage = ((float)rawValue / 1023.0) * 5000.0; // in mV
  float zeroOffsetVoltage = ((float)zeroOffset / 1023.0) * 5000.0; // in mV

  // Calculate current in Amps
  float current = (voltage - zeroOffsetVoltage) / SENSITIVITY;

  Serial.print("Current: ");
  Serial.print(current, 3);
  Serial.println(" A");

  delay(500);
}

Linear Hall Sensors & Current ICs Sourcing in India

Sourcing linear Hall sensors (SS49E, AH3503) or current sensor modules (ACS712) in India is straightforward across these electronics markets:

Frequently Asked Questions

Conclusion

Linear Hall effect sensors bridge the gap between continuous magnetic forces and analog signal acquisition. By understanding how to resolve zero-field baseline offsets, convert raw ADC steps into millivolts, and apply linear sensitivity parameters, you can deploy these sensors for robust, wear-free position tracking and isolated current monitoring.
